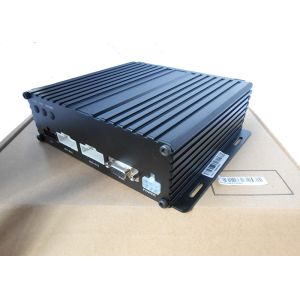

    H 264 8 Channel Mobile DVR D1 SD Card HDD Hard Disk Record GPS 3G Wifi Super Mini MDVR

    Ask Lasest Price
    Brand Name : LUHOOVISION
    Model Number : ST-508-06
    Certification : CE FCC
    Price : USD 138-210 PER PIECE
    Payment Terms : T/T, Western Union
    Supply Ability : 5000 pcs per month
    Delivery Time : 5-8 working days.
    • Product Details
    • Company Profile

    H 264 8 Channel Mobile DVR D1 SD Card HDD Hard Disk Record GPS 3G Wifi Super Mini MDVR

    8 Channel Mobile DVR D1 SD Card HDD Hard Disk Record GPS 3G Wifi Super Mini MDVR


    8 Channel Mobile DVR D1 SD Card HDD Record GPS/3G/Wifi Super Mini MDVR Features

    HIS Solution,H.264 Compression, Multiple Stream recording ,max support 8CH D1 Video all real-time video recording;
    High quality real time recording, CIF/HD1/D1 Optional, quality adjustable;

    Professional Car Power Design,6-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;

    Support 12VDC/3Amp output voltage,power supply for Camera/Screen etc;

    Max 2TB HDD + 128GB SD Card recording,protect DVR from shock & Dust damage;

    Watchdog abnormal restart function,protect SD Card and Record;

    Exclusive File System protect data completeness,prevent SD Card fragment, protect the integrity of data;

    ACC Delay off,can set 24 hours;

    Unique UPS Technology ensures the integrity of record when power failure occurs,even can for 10-15s.

    Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;

    Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;

    Support GPS/BD,3G/4G Module Optional,WIFI extend;

    Strong Network,device configure via IE Web,Support SMS Get device information and configure;

    Support Monitoring,Intercom, PTZ, Alarm,Over-speed,Geo Fence etc through remote control platform;

    8CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

    2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off;

    High level aviation interface,easily installation and better shockproof, more stable;

    Support Local Auto-photo when alarm input.

    Easily Smart GUI Interface, saving time in device setting;

    Strong Stable Application,Support 3G/4G Real-time monitor, talk-back,playback,record,picture snap etc;

    Updated through SD or OTA Remote Automatic updating,more stable and convenient;

    Support Phone Remote Monitor,Phone Calling etc;

    Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;

    Support extension module such as PTZ control, POS machine, Fuel oil sensor, LED advertising, etc.

    Be Customized according your request;


    8 Channel Mobile DVR D1 SD Card HDD Hard Disk Record GPS 3G Wifi Super Mini MDVR Spec:

    OSLinux
    LanguageChinese/English/Customized
    Video CompressionH.264
    OSDOverlays information such as date time and vehicle ID
    GUIGraphical User InterfaceSetup system parameters with the remote control
    Video Record SystemVideo Input8CH standard definition input,aviation connector, 1.0Vp-p, 75Ω
    Video Output2 CVBS output+ VGA output(Optional) , 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen,9CH screen.
    PreviewSupport 1 channel ,4 channels and 9 channels preview.,Support Manual/Alarm Trigger full screen preview
    ResolutionD1/HD1/CIF, MAX:8 channels D1.
    Video Quality0-7 levels, 0 is the highest level
    Video Standard

    PAL: 100f/s , CCIR625 line,50field;

    NTSC: 120f/s, CCIR525 line,60field;

    CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

    HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

    D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

    Record ModeThe default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported
    AudioAudio Input4CH Aviation Plug Input
    Audio Output2CH,headphone connect at front panel, BNC Connect on Back panel
    CompressionG.726 compression, 8KB/s speed
    Alarm Input7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
    Alarm Output2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
    Interface3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
    1CH 485 Interface,Connect PTZ Camera
    Wireless

    Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;

    Built in 4G module optional, TDD-LTE, FDD-LTE

    GPSSupport GPS
    StorageHDDMax 2.5” 2TB HDD
    SD CardMax 128GB SD Card Mirror Recording Keep Data Safety
    UpdateSupport USB Updating, SD Card Updating,OTA Remote Updating
    File FormatH.264
    File SystemSpecial FAT32 File System
    USBUSB Interface on Front Panel for data back up by U Disk,Hard Disk
    Video PlaybackVideo SearchSearch By Record Time/Record Type etc
    PlaybackMax support 4CH Replay /Stop/Fast/Slow at same time
    Support forward and backward play at the speed of: x 2,x4,x8,x16
    Optional FunctionsVoice CallSupport voice call each other
    TTS Voice BroadcastSupport TTS voice broadcast function.
    Serial ExpandSupport LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device
    Power ConsumptionPower ManagementWide Voltage.Support Timed/Delay off
    Voltage InputDC:+6V - +36V
    Voltage Output+12V 1.5A,+5V 1.5A
    PowerWorking <5W
    Working EnvironmentTemperature-20℃ to +70℃
    Humidity20% to 80%
    SecurityPasswordUser/Admin 2 Level Different Password
